Vulkan Command Execution

Unlike OpenGL or DirectX pre-11, in Vulkan, all GPU commands have to go through a command buffer, and executed through a Queue.

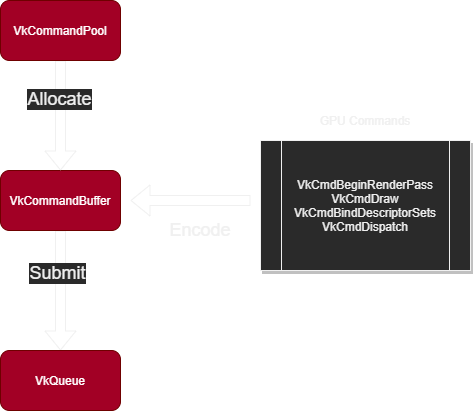

The general flow to execute commands is:

• You allocate a vk..CommandBuffer from a vk..CommandPool
• You record commands into the command buffer, using vk..CmdXXXXX functions.
• You submit the command buffer into a vk..Queue, which starts executing the commands.

It is possible to submit the same command buffer multiple times. In tutorials and samples it's very common to record the commands once, and then submit them every frame in the render loop. In this tutorial, we are going to record the commands every frame, as it's more relevant to how a real render engine works.

Recording commands in Vulkan is relatively cheap. Often, the operation that is costly is the VkQueueSubmit call, where the driver validates the command buffer and executes it on the GPU.

One very important part with command buffers is that they can be recorded in parallel. You can record different command buffers from different threads safely. To do that, you need to have 1 vk..CommandPool and 1 vk..CommandBuffer per thread (minimum), and make sure that each thread only uses their own command buffers & pools. Once that is done, it's possible to submit the command buffers in one of the threads. vk.QueueSubmit is not thread-safe, only one thread can push the commands on a given queue at a time. Its common in big engines to have the submit being done from a background thread, and that way the main render-loop thread can continue executing.

vk.Queue

Queues in Vulkan are an "execution port" for GPUs. Every GPU has multiple queues available, and you can even use them at the same time to execute different command streams. Commands submitted to separate queues may execute at once. This is very useful if you are doing background work that doesn't exactly map to the main frame loop. You can create a vk..Queue specifically for said background work and have it separated from the normal rendering.

All queues in Vulkan come from a Queue Family. A Queue Family is the "type" of queue it is, and what type of commands it supports.

Different GPUs support different Queue Families. An example is this NVidia GT 750ti from Vulkan Hardware Info Link. It has 2 Queue families, one that supports up to 16 queues that have all features, and then a family that can support 1 queue for transfer only. Here you have an example for a high end AMD card, there are 5 queue families, and only up to 2 queues per type. It has 1 queue that supports everything, up to 2 queues that support compute and transfer, 2 dedicated transfer queues, and then 2 other queues for present alone. As you can see, the queues supported by each GPU can vary significantly.

It is common to see engines using 3 queue families. One for drawing the frame, other for async compute, and other for data transfer. In this tutorial, we use a single queue that will run all our commands for simplicity.

vk.CommandPool

A vk..CommandPool is created from the vk..Device, and you need the index of the queue family this command pool will create commands from.

Think of the vk..CommandPool as the allocator for a vk..CommandBuffer. You can allocate as many vk..CommandBuffer as you want from a given pool, but you can only record commands from one thread at a time. If you want multithreaded command recording, you need more vk..CommandPool objects. For that reason, we will pair a command buffer with its command allocator.

vk.CommandBuffer

All commands for GPU get recorded in a VkCommandBuffer. All of the functions that will execute GPU work won't do anything until the command buffer is submitted to the GPU through a vk..QueueSubmit call.

Command buffers start in the Ready state. When in the Ready state, you can call vk.BeginCommandBuffer() to put it into the Recording state. Now you can start inputting commands into it with vk.CmdXXXXX functions. Once you are done, call vk.EndCommandBuffer() to finish the recording the commands and put it in the Executable state where it is ready to be submitted into the GPU.

To submit the command buffer, you call vk.QueueSubmit(), using both the command and the queue to submit into. vk.QueueSubmit also accepts submitting multiple command buffers together. Any command buffer that is submitted is put in the Pending state.

Once a command buffer has been submitted, it's still "alive", and being consumed by the GPU, at this point it is NOT safe to reset the command buffer yet. You need to make sure that the GPU has finished executing all of the commands from that command buffer until you can reset and reuse it

To reset a command buffer, you use vk.ResetCommandBuffer().

As we will want to continue drawing the next frame while the command buffer is executed, we are going to double-buffer the commands. This way, while the gpu is busy rendering and processing one buffer, we can write into a different one.

For more detailed information on the command buffer lifecycle, refer to the Vulkan specification chapter for Command Buffers.
