Mesh Buffers

To render objects properly, we need to send our vertex data to the vertex shader. Right now, we are using a hardcoded array, but that will not work for anything other than a single triangle or similar geometry.

As we arent using the fixed procedure vertex attribute fetch logic on the pipeline, we have total freedom on how exactly do we load our vertex data in the shaders. We will be loading the vertices from big gpu buffers passed through Buffer Device Adress, which gives high performance and great flexibility.

Vulkan Buffers

In vulkan, we can allocate general usage memory through buffers. They are different from images in that they dont need samplers and act more as a typical cpu side structure or array. We can access them in the shaders just as structures or array of structures.

When a buffer is created, we need to set the usage flags for it. We will be setting those as we use them.

For the general read/write operations in the shaders, there are 2 types of buffers. Uniform Buffers and Storage Buffers.

With uniform buffers (UBO), only a small amount can be accessed in the shader (vendor dependant, 16 kilobytes guaranteed minimum) and the memory will be read-only. On the other side, this offers the fastest access possible as the GPU might pre-cache it when loading the pipeline. The size limit is only on the part that is bound to the shader. Its completely fine to create a single big uniform buffer, and then bind to the shader only small sections of it. Depending on the hardware, push-constants can be implemented as a type of uniform-buffer handled by the driver.

Storage buffers (SSBO) are fully generic read-write buffers with very high size. Spec minimum size is 128 megabytes, and the modern PC gpus we are targetting with this tutorial all have it at 4 gigabits, and only because its what a u32 size can hold. Storage buffers dont get preloaded in the same way uniform buffers can, and are more "generic" data load/store.

Due to the small size of uniform buffers, we cant use them for vertex geometry. But they are great for material parameters and global scene configuration.

The exact speed difference between uniform buffers and storage buffers depends on the specific gpu and what the shader is doing, so its quite common to use storage buffers for almost everything and take advantage of their greater flexibility, as the possible speed difference might end up not mattering for the project.

In this benchmark, different ways of accessing buffers are compared PerfTest.

When creating the descriptors, its also possible to have them as Dynamic buffer. If you use that, you can control the offset the buffer is bound to when writing the commands. This lets you use 1 descriptor set for multiple objects draws, by storing the uniform data for multiple objects into a big buffer, and then binding that descriptor at different offsets within that. It works well for uniform buffers, but for storage buffers its better to go with device-address.

Buffer Device Address

Normally, buffers will need to be bound through descriptor sets, where we would bind 1 buffer of a given type. This means we need to know the specific buffer dimensions from the CPU (for uniform buffers) and need to deal with the lifetime of descriptor sets. For this project, as we are targetting vulkan 1.3, we can take advantage of a different way of accessing buffers, Buffer Device Adress. This essentially lets us send a i64 pointer to the gpu (through whatever way) and then access it in the shader, and its even allowed to do pointer math with it. Its essentially the same mechanics as a Cpp pointer would have, with things like linked lists and indirect accesses allowed.

We will be using this for our vertices because accessing a SSBO through device address is faster than accessing it through descriptor sets, and we can send it through push constants for a really fast and really easy way of binding the vertex data to the shaders.

Immediate GPU Commands

In Vulkan, we typically execute GPU commands as part of a structured draw loop, where rendering commands are recorded into a command buffer and submitted to the GPU in sync with the swapchain and the overall rendering pipeline. However, there are scenarios—like performing copy operations or other one-off tasks—where we need to issue commands to the GPU outside of this normal draw loop. This is where immediate GPU commands come into play.

The need for immediate commands arises because certain operations, such as copying data between buffers or from a buffer to an image, don’t depend on the rendering process or the swapchain’s presentation timing. Forcing these operations to wait for the draw loop introduces unnecessary synchronization overhead and complexity, especially when they’re one-off tasks or preparatory steps that don’t need to align with frame rendering. In an engine, this flexibility is critical, as we anticipate needing immediate command execution for various use cases beyond just copy operations—think resource uploads, debug utilities, or asynchronous compute tasks.

To address this, we’re implementing an engine_immediate_submit procedure. This procedure leverages a dedicated command buffer, separate from the one used for rendering, and employs a fence for synchronization. Unlike the draw loop’s command buffer, which is tightly coupled to swapchain presentation and rendering logic, this immediate command buffer allows us to send commands to the GPU on-demand. The fence ensures that we can track when the GPU has completed the work, without tying it to the swapchain or the rendering pipeline’s timing. This approach avoids stalling the main render path and provides a clean, reusable mechanism for submitting arbitrary GPU work whenever it’s needed.

To begin, lets add some fields into the Engine structure.

Engine :: struct {
    // Immediate submit
    imm_fence:          vk.Fence,
    imm_command_buffer: vk.CommandBuffer,
    imm_command_pool:   vk.CommandPool,
}

We have a fence and a command buffer with its pool.

We need to create those syncronization structures for immediate submit, so lets go into engine_init_commands() procedure and hook the command part.

engine_init_commands :: proc(self: ^Engine) -> (ok: bool) {
    // Other code ---

    vk_check(
        vk.CreateCommandPool(self.vk_device, &command_pool_info, nil, &self.imm_command_pool),
    ) or_return

    // Allocate the command buffer for immediate submits
    cmd_alloc_info := command_buffer_allocate_info(self.imm_command_pool)
    vk_check(
        vk.AllocateCommandBuffers(self.vk_device, &cmd_alloc_info, &self.imm_command_buffer),
    ) or_return

    deletion_queue_push(&self.main_deletion_queue, self.imm_command_pool)

    return true
}

This is the same we were doing with the per-frame commands, but this time we are directly putting it into the deletion queue for cleanup.

Now we need to create the fence, which we are going to add to engine_init_sync_structures(). Add it to the end.

engine_init_sync_structures :: proc(self: ^Engine) -> (ok: bool) {
    // Other code ---

    vk_check(vk.CreateFence(self.vk_device, &fence_create_info, nil, &self.imm_fence)) or_return

    deletion_queue_push(&self.main_deletion_queue, self.imm_fence)

    return true
}

We will use the same fence_create_info we were using for the per-frame fences. Same as with the commands, we are directly adding its destroy procedure to the deletion queue too.

Now implement the engine_immediate_submit procedure.

engine_immediate_submit :: proc(
    self: ^Engine,
    data: $T,
    fn: proc(engine: ^Engine, cmd: vk.CommandBuffer, data: T),
) -> (
    ok: bool,
) {
    vk_check(vk.ResetFences(self.vk_device, 1, &self.imm_fence)) or_return
    vk_check(vk.ResetCommandBuffer(self.imm_command_buffer, {})) or_return

    cmd := self.imm_command_buffer

    cmd_begin_info := command_buffer_begin_info({.ONE_TIME_SUBMIT})

    vk_check(vk.BeginCommandBuffer(cmd, &cmd_begin_info)) or_return

    fn(self, cmd, data)

    vk_check(vk.EndCommandBuffer(cmd)) or_return

    cmd_info := command_buffer_submit_info(cmd)
    submit_info := submit_info(&cmd_info, nil, nil)

    // Submit command buffer to the queue and execute it.
    //  `render_fence` will now block until the graphic commands finish execution
    vk_check(vk.QueueSubmit2(self.graphics_queue, 1, &submit_info, self.imm_fence)) or_return

    vk_check(vk.WaitForFences(self.vk_device, 1, &self.imm_fence, true, 9999999999)) or_return

    return true
}

Note how this procedure is very similar and almost the same as the way we are executing commands on the gpu.

Here’s how it works: First, we reset the fence (imm_fence) and the immediate command buffer (imm_command_buffer) to ensure they’re ready for use. We then begin the command buffer with the ONE_TIME_SUBMIT flag, signaling that it’ll be used once and can be optimized accordingly by the Vulkan driver. Next, we invoke the provided fn callback, passing the engine instance, the command buffer, and the user-provided data, allowing the caller to record their desired commands. After the callback completes, we end the command buffer and submit it to the graphics queue using vk.QueueSubmit2, associating it with the imm_fence for synchronization. Finally, we wait for the fence to signal completion with vk.WaitForFences, ensuring the GPU has finished the work before proceeding.

Its close to the same thing, except we are not syncronizing the submit with the swapchain.

We will be using this procedure for data uploads and other “instant” operations outside of the render loop. One way to improve it would be to run it on a different queue than the graphics queue, and that way we could overlap the execution from this with the main render loop.

Creating Buffers

Lets begin writing the code needed to upload a mesh to gpu. First we need a way to create buffers.

Add this to core.odin.

Allocated_Buffer :: struct {
    buffer:     vk.Buffer,
    info:       vma.Allocation_Info,
    allocation: vma.Allocation,
    allocator:  vma.Allocator,
}

We will use this structure to hold the data for a given buffer. We have the vk.Buffer which is the vulkan handle, and the vma.Allocation and vma.AllocationInfo which contains metadata about the buffer and its allocation, needed to be able to free the buffer. We also store the vma.Allocator for use on cleanup later.

Lets add a create_buffer procedure into core.odin. We will take an allocation size, the usage flags, and the vma memory usage so that we can control where the buffer memory is.

This is the implementation.

create_buffer :: proc(
    self: ^Engine,
    alloc_size: vk.DeviceSize,
    usage: vk.BufferUsageFlags,
    memory_usage: vma.Memory_Usage,
) -> (
    new_buffer: Allocated_Buffer,
    ok: bool,
) {
    // allocate buffer
    buffer_info := vk.BufferCreateInfo {
        sType = .BUFFER_CREATE_INFO,
        size  = alloc_size,
        usage = usage,
    }

    vma_alloc_info := vma.Allocation_Create_Info {
        usage = memory_usage,
        flags = {.Mapped},
    }

    new_buffer.allocator = self.vma_allocator

    // allocate the buffer
    vk_check(
        vma.create_buffer(
            self.vma_allocator,
            buffer_info,
            vma_alloc_info,
            &new_buffer.buffer,
            &new_buffer.allocation,
            &new_buffer.info,
        ),
    ) or_return

    return new_buffer, true
}

First we need to fill the vk.BuffercreateInfo structure from vulkan. It takes a size and usage flags. Then we create the vma.Allocation_Create_Info for the properties needed by VMA. We can use the Vma.Memory_Usage flags to control where VMA will put our buffer. With images, we were creating them in device local memory, which is the fastest memory possible as its on GPU VRAM, but with buffers, we have to decide if we want them to be writeable from cpu directly or not. These would be the main usages we can use.

• Gpu_Only Is for purely GPU-local memory. This memory wont be writeable or readable from CPU because its on GPU VRAM, but its the fastest to both read and write with shaders.
• Cpu_Only Is for memory that is on the CPU RAM. This is memory we can write to from CPU, but the GPU can still read from it. Keep in mind that because this is on CPU ram which is outside of the GPU, the accesses to this will come at a performance hit. It is still quite useful if we have data that changes every frame or small amounts of data where slower access wont matter.
• Cpu_To_Gpu Is also writeable from CPU, but might be faster to access from GPU. On vulkan 1.2 and forwards, GPUs have a small memory region on their own VRAM that is still writeable from CPU. Its size is limited unless we use Resizable BAR, but its memory that is both cpu-writeable and fast to access in GPU.
• Gpu_To_Cpu Used on memory that we want to be safely readable from CPU.

We are using the allocation create flags .MAPPED on all our buffer allocations. This would map the pointer automatically so we can write to the memory, as long as the buffer is accesible from CPU. VMA will store that pointer as part of the allocationInfo.

With a create buffer procedure, we also need a destroy buffer procedure. The only thing we need to do is to call vma.destroy_buffer.

destroy_buffer :: proc(self: Allocated_Buffer) {
    vma.destroy_buffer(self.allocator, self.buffer, self.allocation)
}

Lets update our deletion queue to handle the destruction of allocated buffers. Here is the relevant code with other parts omitted:

deletion_queue.odin

Resource :: union {
    // Higher-level custom resources
    Allocated_Buffer,
}

deletion_queue_flush :: proc(queue: ^Deletion_Queue) {
    #reverse for &resource in queue.resources {
        switch &res in resource {
        // Higher-level custom resources
        case Allocated_Buffer:
            destroy_buffer(res)
        }
    }
}

With this we can create our mesh structure and setup the vertex buffer.

Mesh Buffers On GPU

core.odin

import la "core:math/linalg"

Vertex :: struct {
    position: la.Vector3f32,
    uv_x:     f32,
    normal:   la.Vector3f32,
    uv_y:     f32,
    color:    la.Vector4f32,
}

// Holds the resources needed for a mesh
GPU_Mesh_Buffers :: struct {
    index_buffer:          Allocated_Buffer,
    vertex_buffer:         Allocated_Buffer,
    vertex_buffer_address: vk.DeviceAddress,
}

// Push constants for our mesh object draws
GPU_Draw_Push_Constants :: struct {
    world_matrix:  la.Matrix4f32,
    vertex_buffer: vk.DeviceAddress,
}

We need a vertex format, so lets use this one. when creating a vertex format its very important to compact the data as much as possible, but for the current stage of the tutorial it wont matter. We will optimize this vertex format later. The reason the uv parameters are interleaved is due to alignement limitations on GPUs. We want this structure to match the shader version so interleaving it like this improves it.

We store our mesh data into a GPU_Mesh_Buffers struct, which will contain the allocated buffer for both indices and vertices, plus the buffer device adress for the vertices.

We will create a struct for the push-constants we want to draw the mesh, it will contain the transform matrix for the object, and the device adress for the mesh buffer.

Now we need a procedure to create those buffers and fill them on the gpu.

core.odin

upload_mesh :: proc(
    self: ^Engine,
    indices: []u32,
    vertices: []Vertex,
) -> (
    new_surface: GPU_Mesh_Buffers,
    ok: bool,
) {
    vertex_buffer_size := vk.DeviceSize(len(vertices) * size_of(Vertex))
    index_buffer_size := vk.DeviceSize(len(indices) * size_of(u32))

    // Create vertex buffer
    new_surface.vertex_buffer = create_buffer(
        self,
        vertex_buffer_size,
        {.STORAGE_BUFFER, .TRANSFER_DST, .SHADER_DEVICE_ADDRESS},
        .Gpu_Only,
    ) or_return
    defer if !ok {
        destroy_buffer(new_surface.vertex_buffer)
    }

    // Find the address of the vertex buffer
    device_address_info := vk.BufferDeviceAddressInfo {
        sType  = .BUFFER_DEVICE_ADDRESS_INFO,
        buffer = new_surface.vertex_buffer.buffer,
    }
    new_surface.vertex_buffer_address = vk.GetBufferDeviceAddress(
        self.vk_device,
        &device_address_info,
    )

    // Create index buffer
    new_surface.index_buffer = create_buffer(
        self,
        index_buffer_size,
        {.INDEX_BUFFER, .TRANSFER_DST},
        .Gpu_Only,
    ) or_return
    defer if !ok {
        destroy_buffer(new_surface.index_buffer)
    }

    return new_surface, true
}

The procedure will take a slice of integers for its indices, and of Vertex for vertices.

First we do is to calculate how big the buffers need to be. Then, we create our buffers on GPU-only memory.

On the vertex buffer we use these Usage flags:

• STORAGE_BUFFER because its a SSBO, and
• SHADER_DEVICE_ADDRESS because will be taking its adress.

On the index buffer we use INDEX_BUFFER to signal that we are going to be using that buffer for indexed draws.

We also have TRANSFER_DST on both buffers as we will be doing memory copy commands to them.

To take the buffer address, we need to call vk.GetBufferDeviceAddress, giving it the vk.Buffer we want to do that on. Once we have the vk.DeviceAddress, we can do pointer math with it if we want, which is useful if we are sub-allocating from a bigger buffer.

With the buffers allocated, we need to write the data into them. For that, we will be using a staging buffer. This is a very common pattern with vulkan. As GPU_ONLY memory cant be written on CPU, we first write the memory on a temporal staging buffer that is CPU writeable, and then execute a copy command to copy this buffer into the GPU buffers. Its not necesary for meshes to use GPU_ONLY vertex buffers, but its highly recommended unless its something like a CPU side particle system or other dynamic effects.

core.odin

upload_mesh :: proc(
    self: ^Engine,
    indices: []u32,
    vertices: []Vertex,
) -> (
    new_surface: GPU_Mesh_Buffers,
    ok: bool,
) {
    // Other code ---

    staging := create_buffer(
        self,
        vertex_buffer_size + index_buffer_size,
        {.TRANSFER_SRC},
        .Cpu_Only,
    ) or_return
    defer destroy_buffer(staging)

    data := staging.info.mapped_data
    // Copy vertex buffer
    intr.mem_copy(data, raw_data(vertices), vertex_buffer_size)
    // Copy index buffer
    intr.mem_copy(
        rawptr(uintptr(data) + uintptr(vertex_buffer_size)),
        raw_data(indices),
        index_buffer_size,
    )

    // Create a struct to hold all the copy parameters
    Copy_Data :: struct {
        staging_buffer:     vk.Buffer,
        vertex_buffer:      vk.Buffer,
        index_buffer:       vk.Buffer,
        vertex_buffer_size: vk.DeviceSize,
        index_buffer_size:  vk.DeviceSize,
    }

    // Prepare the data structure
    copy_data := Copy_Data {
        staging_buffer     = staging.buffer,
        vertex_buffer      = new_surface.vertex_buffer.buffer,
        index_buffer       = new_surface.index_buffer.buffer,
        vertex_buffer_size = vertex_buffer_size,
        index_buffer_size  = index_buffer_size,
    }

    // Call the immediate submit with our data and procedure
    engine_immediate_submit(
        self,
        copy_data,
        proc(engine: ^Engine, cmd: vk.CommandBuffer, data: Copy_Data) {
            // Setup vertex buffer copy
            vertex_copy := vk.BufferCopy {
                srcOffset = 0,
                dstOffset = 0,
                size      = data.vertex_buffer_size,
            }

            // Copy vertex data from staging to the new surface vertex buffer
            vk.CmdCopyBuffer(cmd, data.staging_buffer, data.vertex_buffer, 1, &vertex_copy)

            // Setup index buffer copy
            index_copy := vk.BufferCopy {
                srcOffset = data.vertex_buffer_size,
                dstOffset = 0,
                size      = data.index_buffer_size,
            }

            // Copy index data from staging to the new surface index buffer
            vk.CmdCopyBuffer(cmd, data.staging_buffer, data.index_buffer, 1, &index_copy)
        },
    )

    return new_surface, true
}

In the upload_mesh procedure, we begin by creating a staging buffer, a single temporary buffer used to facilitate data transfer for both the vertex and index buffers. This buffer is sized to accommodate the combined data of the vertex buffer (vertex_buffer_size) and the index buffer (index_buffer_size). We configure it with the {.TRANSFER_SRC} usage flag, indicating that its sole purpose is to serve as the source for a data transfer operation. Additionally, we set its memory type to .Cpu_Only, ensuring that it is accessible for CPU writes, which is critical for the subsequent steps.

After creating the staging buffer, we retrieve a pointer to its mapped memory via staging.info.mapped_data. This raw pointer (rawptr) allows direct CPU access to the buffer’s memory, a capability enabled by the {.Mapped} flag used during allocation. Using this pointer, we perform two memory copy operations with intr.mem_copy:

1. The vertex data (vertices) is copied into the staging buffer starting at offset 0.
2. The index data (indices) is copied immediately following the vertex data, at an offset equal to vertex_buffer_size. This layout ensures both datasets are sequentially packed into the staging buffer.

With the staging buffer now populated, we prepare to transfer this data to the GPU. To do this efficiently, we define a Copy_Data struct that encapsulates all necessary parameters for the transfer: the staging buffer, the target vertex and index buffers (stored in new_surface), and their respective sizes. This struct is passed to engine_immediate_submit, a utility procedure that executes a command on the GPU immediately.

Inside the submission callback, we define the GPU-side transfer logic:

• For the vertex buffer, we create a vk.BufferCopy structure specifying a source offset of 0 (where the vertex data begins in the staging buffer), a destination offset of 0 (the start of the vertex buffer), and the size of the vertex data. We then issue a vk.CmdCopyBuffer command to copy this data from the staging buffer to the new_surface.vertex_buffer.
• For the index buffer, we create another vk.BufferCopy structure. Here, the source offset is set to vertex_buffer_size (where the index data begins in the staging buffer), the destination offset is 0 (the start of the index buffer), and the size matches the index data. A second vk.CmdCopyBuffer command transfers this data to new_surface.index_buffer.

These vk.CmdCopyBuffer operations are GPU-accelerated equivalents of the earlier intr.mem_copy calls, but they move data from the staging buffer to the final GPU buffers instead of from CPU memory to the staging buffer. The vk.BufferCopy structures directly mirror the offsets and sizes used in the CPU-side copies, ensuring a seamless handoff.

Once the engine_immediate_submit completes, the staging buffer’s role is finished, so we destroy it using destroy_buffer, leveraging the defer statement to ensure cleanup occurs automatically before the procedure returns.

warning

Note that this pattern is not very efficient, as we are waiting for the GPU command to fully execute before continuing with our CPU side logic. This is something people generally put on a background thread, whose sole job is to execute uploads like this one, and deleting/reusing the staging buffers.

Drawing a Mesh

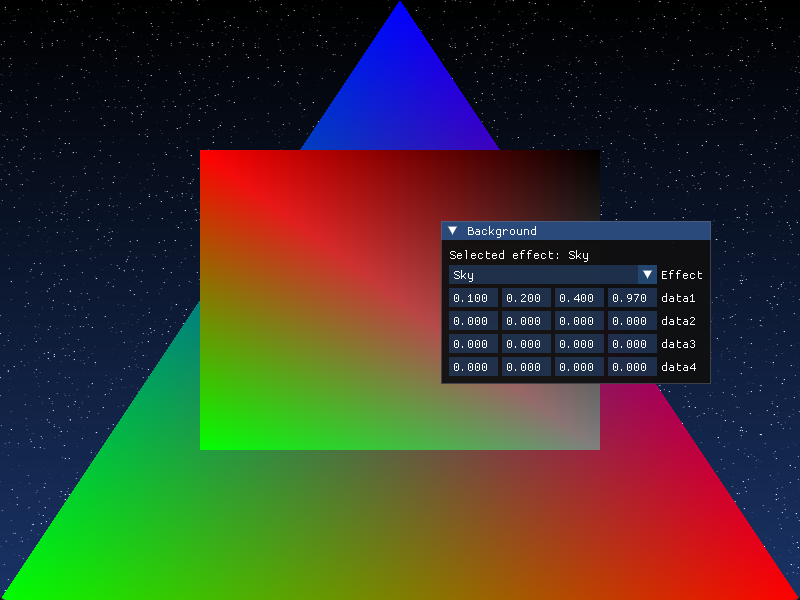

Lets proceed with making a mesh using all this, and draw it. We will be drawing a indexed rectangle, to combine with our triangle.

The shader needs to change for our vertex buffer, so while we are still going to be using colored_triangle.frag for our fragment shader, we will change the vertex shader to load the data from the push-constants. We will create that shader as colored_triangle_mesh.vert, as it will be the same as the hardcoded triangle.

/shaders/source/colored_triangle_mesh.vert.slang

struct VSOutput
{
    float4 pos : SV_Position;
    [vk_location(0)]
    float3 color : COLOR0;
    [vk_location(1)]
    float2 uv : TEXCOORD0;
};

struct Vertex
{
    float3 position;
    float uv_x;
    float3 normal;
    float uv_y;
    float4 color;
};

struct PushConstants
{
    float4x4 render_matrix;
    Vertex *vertex_buffer;
};

[vk_push_constant]
PushConstants push_constants;

[shader("vertex")]
VSOutput main(uint vertex_index: SV_VertexID)
{
    Vertex v = push_constants.vertex_buffer[vertex_index];

    VSOutput output;
    output.pos = mul(push_constants.render_matrix, float4(v.position, 1.0));
    output.color = v.color.xyz;
    output.uv.x = v.uv_x;
    output.uv.y = v.uv_y;

    return output;
}

In this Slang shader, we're working with a vertex buffer provided from the CPU side instead of hardcoding our vertices.

The Vertex struct is defined identically to match the struct we have on the CPU side, ensuring memory layout compatibility.

We're leveraging Slang's pointer capabilities. This allows us to pass a pointer to our vertex buffer via push constants rather than binding a dedicated vertex buffer.

The PushConstants struct contains:

1. A transformation matrix (render_matrix)
2. A pointer to the vertex buffer (vertex_buffer)

With the [vk_push_constant] attribute, we tell Slang that this data will be provided through Vulkan push constants, making it quickly accessible in the shader.

In our main function, we:

1. Use the vertex_index to access the appropriate vertex from our buffer
2. Transform the vertex position using the provided matrix with the mul function
3. Pass through the color from the vertex data
4. Construct UV coordinates from the separate x and y components in our vertex structure

Unlike GLSL where buffer addresses use dot notation regardless of being pointers, Slang follows HLSL conventions where we use array indexing syntax to dereference our vertex buffer pointer.

This shader allows us to efficiently process any number of vertices from a buffer provided by the CPU, rather than being limited to hardcoded vertices as in our previous example.

Lets create the pipeline now. We will create a new pipeline procedure, separate from engine_init_triangle_pipeline() but almost the same.

Add this to Engine structure.

Engine :: struct {
    mesh_pipeline_layout: vk.PipelineLayout,
    mesh_pipeline:        vk.Pipeline,
    rectangle:            GPU_Mesh_Buffers,
}

Lets add the engine_init_mesh_pipeline, its going to be mostly a copypaste of engine_init_triangle_pipeline().

engine_init_mesh_pipeline :: proc(self: ^Engine) -> (ok: bool) {
    triangle_frag_shader := create_shader_module(
        self.vk_device,
        #load("./../../shaders/compiled/colored_triangle.frag.spv"),
    ) or_return
    defer vk.DestroyShaderModule(self.vk_device, triangle_frag_shader, nil)

    triangle_vertex_shader := create_shader_module(
        self.vk_device,
        #load("./../../shaders/compiled/colored_triangle_mesh.vert.spv"),
    ) or_return
    defer vk.DestroyShaderModule(self.vk_device, triangle_vertex_shader, nil)

    buffer_range := vk.PushConstantRange {
        offset     = 0,
        size       = size_of(GPU_Draw_Push_Constants),
        stageFlags = {.VERTEX},
    }

    pipeline_layout_info := pipeline_layout_create_info()
    pipeline_layout_info.pPushConstantRanges = &buffer_range
    pipeline_layout_info.pushConstantRangeCount = 1

    vk_check(
        vk.CreatePipelineLayout(
            self.vk_device,
            &pipeline_layout_info,
            nil,
            &self.triangle_pipeline_layout,
        ),
    ) or_return
    deletion_queue_push(&self.main_deletion_queue, self.triangle_pipeline_layout)

    return true
}

We change the vertex shader to load colored_triangle_mesh.vert.spv, and we modify the pipeline layout to give it the push constants struct we defined above.

For the rest of the procedure, we do the same as in the triangle pipeline procedure, but changing the pipeline layout and the pipeline name to be the new ones.

engine_init_mesh_pipeline :: proc(self: ^Engine) -> (ok: bool) {
    // Other code ---

    builder := pipeline_builder_create_default()

    // Use the triangle layout we created
    builder.pipeline_layout = self.mesh_pipeline_layout
    // Add the vertex and pixel shaders to the pipeline
    pipeline_builder_set_shaders(&builder, triangle_vertex_shader, triangle_frag_shader)
    // It will draw triangles
    pipeline_builder_set_input_topology(&builder, .TRIANGLE_LIST)
    // Filled triangles
    pipeline_builder_set_polygon_mode(&builder, .FILL)
    // No backface culling
    pipeline_builder_set_cull_mode(&builder, vk.CullModeFlags_NONE, .CLOCKWISE)
    // No multisampling
    pipeline_builder_set_multisampling_none(&builder)
    // No blending
    pipeline_builder_disable_blending(&builder)
    // No depth testing
    pipeline_builder_disable_depth_test(&builder)

    // Connect the image format we will draw into, from draw image
    pipeline_builder_set_color_attachment_format(&builder, self.draw_image.image_format)
    pipeline_builder_set_depth_attachment_format(&builder, .UNDEFINED)

    // Finally build the pipeline
    self.mesh_pipeline = pipeline_builder_build(&builder, self.vk_device) or_return
    deletion_queue_push(&self.main_deletion_queue, self.mesh_pipeline)

    return true
}

Now we call this procedure from our main engine_init_pipelines() procedure.

engine_init_pipelines :: proc(self: ^Engine) -> (ok: bool) {
    // Compute pipelines
    engine_init_background_pipeline(self) or_return

    // Graphics pipelines
    engine_init_triangle_pipeline(self) or_return
    engine_init_mesh_pipeline(self) or_return

    return true
}

Next we need to create and upload the mesh. We create a new initialization procedure, engine_init_default_data() for our default data in the engine. Add it into the main engine_init() procedure, at the end.

engine_init_default_data :: proc(self: ^Engine) -> (ok: bool) {
    // odinfmt: disable
    rect_vertices := [4]Vertex {
        { position = {0.5,-0.5, 0},  color = { 0,0, 0.0, 1.0 }},
        { position = {0.5,0.5, 0},   color = { 0.5, 0.5, 0.5 ,1.0 }},
        { position = {-0.5,-0.5, 0}, color = { 1,0, 0.0, 1.0 }},
        { position = {-0.5,0.5, 0},  color = { 0.0, 1.0, 0.0, 1.0 }},
    }

    rect_indices := [6]u32 {
        0, 1, 2,
        2, 1, 3,
    }
    // odinfmt: enable

    rectangle := upload_mesh(self, rect_indices[:], rect_vertices[:]) or_return

    // Delete the rectangle data on engine shutdown
    deletion_queue_push(&self.main_deletion_queue, &rectangle.index_buffer)
    deletion_queue_push(&self.main_deletion_queue, &rectangle.vertex_buffer)

    return true
}

We create 2 arrays for vertices and indices, and call the upload_mesh procedure to convert it all into buffers.

We can now execute the draw. We will add the new draw command on engine_draw_geometry() procedure, after the triangle we had.

engine_draw_geometry :: proc(self: ^Engine, cmd: vk.CommandBuffer) -> (ok: bool) {
    // Launch a draw command to draw 3 vertices
    vk.CmdDraw(cmd, 3, 1, 0, 0)

    // Other code above ---

    vk.CmdBindPipeline(cmd, .GRAPHICS, self.mesh_pipeline)

    push_constants := GPU_Draw_Push_Constants {
        world_matrix  = la.MATRIX4F32_IDENTITY, // import la "core:math/linalg"
        vertex_buffer = self.rectangle.vertex_buffer_address,
    }

    vk.CmdPushConstants(
        cmd,
        self.mesh_pipeline_layout,
        {.VERTEX},
        0,
        size_of(GPU_Draw_Push_Constants),
        &push_constants,
    )
    vk.CmdBindIndexBuffer(cmd, self.rectangle.index_buffer.buffer, 0, .UINT32)

    vk.CmdDrawIndexed(cmd, 6, 1, 0, 0, 0)

    // Other code bellow ---

    vk.CmdEndRendering(cmd)

    return true
}

We bind another pipeline, this time the rectangle mesh one.

Then, we use push-constants to upload the vertex buffer address to the gpu. For the matrix, we will be defaulting it for now until we implement mesh transformations.

We then need to do a vk.CmdBindPipeline to bind the index buffer for graphics. Sadly there is no way of using device adress here, and you need to give it the vk.Buffer and offsets.

Last, we use vkCmdDrawIndexed to draw 2 triangles (6 indices). This is the same as the vk.CmdDraw, but it uses the currently bound index buffer to draw meshes.

Thats all, we now have a generic way of rendering any mesh.

Next we will load mesh files from a GLTF in the most basic way so we can play around with fancier things than a rectangle.
