Mesh Loading
We will do proper scene loading later, but until we go there, we need something better than a
rectangle as a mesh. For that, we will begin to load GLTF files but in a very simplified
and wrong way, getting only the geometry data and ignoring everything else. To accomplish this,
we are using the cgltf library provided through the vendor package, which offers a lightweight
solution for parsing GLTF files.
There is a glTF file that came with the starting-point repository, called basicmesh.glb.
That one has a cube, a sphere, and a monkey head meshes centered in the origin. Being a file as
simple as that one is, its easy to load it correctly without having to setup up real gltf
loading.
A GLTF file will contain a list of meshes, each mesh with multiple primitives on it. This separation is for meshes that use multiple materials, and thus need multiple draw calls to draw it. The file also contains a scene-tree of scenenodes, some of them containing meshes. We will only be loading the meshes now, but later we will have the full scene-tree and materials loaded.
The cgltf vendor package currently provides precompiled binaries only for Windows. If you're
using a Unix-based system (e.g., Linux or macOS), you'll need to compile the library yourself.
Fortunately, Odin includes a Makefile script to simplify this process, located at
<path-to-odin>/vendor/cgltf/src. Run one of the following commands based on your operating
system:
make linux # For Linux
make darwin # For macOS
Our loading code will all be on the file loader.odin. Lets start by adding a couple of
import's and structures we will need.
package vk_guide
// Core
import "base:runtime"
import "core:log"
import "core:strings"
// Vendor
import "vendor:cgltf"
Geo_Surface :: struct {
start_index: u32,
count: u32,
}
Mesh_Asset :: struct {
name: string,
surfaces: [dynamic]Geo_Surface,
mesh_buffers: GPU_Mesh_Buffers,
}
Mesh_Asset_List :: [dynamic]^Mesh_Asset
// Override the vertex colors with the vertex normals which is useful for debugging.
OVERRIDE_VERTEX_COLORS :: #config(OVERRIDE_VERTEX_COLORS, true)
A given mesh asset will have a name, loaded from the file, and then the mesh buffers. But it
will also have an array of Geo_Surface that has the sub-meshes of this specific mesh. When
rendering each submesh will be its own draw. We will use start_index and count for that
drawcall as we will be appending all the vertex data of each surface into the same buffer.
Now, implement the mesh loading procedure using cgltf:
// Loads 3D mesh data from a glTF file and upload to the GPU.
load_gltf_meshes :: proc(
engine: ^Engine,
file_path: string,
allocator := context.allocator,
) -> (
meshes: Mesh_Asset_List,
ok: bool,
) {
log.debugf("Loading GLTF: %s", file_path)
// Configure cgltf parsing options
// Using .invalid type lets cgltf automatically detect if it's .gltf or .glb
options := cgltf.options {
type = .invalid,
}
ta := context.temp_allocator
runtime.DEFAULT_TEMP_ALLOCATOR_TEMP_GUARD()
c_file_path := strings.clone_to_cstring(file_path, ta)
// Parse the glTF file using cgltf library
data, result := cgltf.parse_file(options, c_file_path)
if result != .success {
log.errorf("Failed to parse GLTF: %v", result)
return
}
defer cgltf.free(data) // Clean up parsed data when procedure exits
// Load external buffer data (binary data referenced by glTF)
buffer_result := cgltf.load_buffers(options, data, c_file_path)
if buffer_result != .success {
log.errorf("Failed to load glTF buffers: %v\n", buffer_result)
return
}
// Temporary arrays for indices and vertices
indices_temp: [dynamic]u32;indices_temp.allocator = ta
vertices_temp: [dynamic]Vertex;vertices_temp.allocator = ta
// Initialize the output mesh list
meshes = make(Mesh_Asset_List, allocator)
defer if !ok {
destroy_mesh_assets(&meshes, allocator)
}
// Process each mesh in the glTF file
for &mesh in data.meshes {
// Allocate new mesh asset
new_mesh := new(Mesh_Asset, allocator)
// Set mesh name
new_mesh.name =
mesh.name != nil ? strings.clone(string(mesh.name)) : strings.clone("unnamed_mesh")
// Initialize surfaces array for this mesh
new_mesh.surfaces = make([dynamic]Geo_Surface, allocator)
// Clear temporary arrays for this mesh
clear(&indices_temp)
clear(&vertices_temp)
// Process each primitive (surface) in the mesh
for &prim in mesh.primitives {
new_surface: Geo_Surface
// Record where this surface's indices start and how many there are
new_surface.start_index = u32(len(indices_temp))
new_surface.count = u32(prim.indices.count)
// Track starting vertex count for index offsetting
initial_vtx := len(vertices_temp)
// Load index data
{
index_accessor := prim.indices
// Pre-allocate space for new indices
reserve(&indices_temp, len(indices_temp) + int(index_accessor.count))
// Temporary buffer for unpacking indices
index_count := index_accessor.count
index_buffer := make([]u32, index_count, ta)
// Unpack all indices from the glTF accessor
if indices_unpacked := cgltf.accessor_unpack_indices(
index_accessor,
raw_data(index_buffer),
uint(size_of(u32)),
index_count,
); indices_unpacked < uint(index_count) {
// Error if we didn't get all expected indices
log.errorf(
"[%s]: Only unpacked %d indices out of %d expected",
new_mesh.name,
indices_unpacked,
index_count,
)
return
}
// Add indices to temp array with vertex offset
for i in 0 ..< index_count {
append(&indices_temp, index_buffer[i] + u32(initial_vtx))
}
}
// Load vertex position data
{
// Find position attribute
pos_accessor: ^cgltf.accessor
for &attr in prim.attributes {
if attr.type == .position {
pos_accessor = attr.data
break
}
}
if pos_accessor == nil {
log.warn("Mesh has no position attribute")
continue // Skip this primitive
}
vertex_count := int(pos_accessor.count)
// Expand vertices array
old_len := len(vertices_temp)
resize(&vertices_temp, old_len + vertex_count)
// Initialize new vertices with defaults
for &vtx in vertices_temp {
vtx = {
normal = {1, 0, 0}, // Default normal points along X
color = {1, 1, 1, 1}, // Default white
uv_x = 0,
uv_y = 0,
}
}
// Unpack position data
positions := make([]f32, vertex_count * 3, ta)
if vertices_unpacked := cgltf.accessor_unpack_floats(
pos_accessor,
raw_data(positions),
uint(vertex_count * 3),
); vertices_unpacked < uint(vertex_count) {
// Error if we didn't get all expected vertices
log.errorf(
"[%s]: Only unpacked %v vertices out of %v expected",
new_mesh.name,
vertices_unpacked,
vertex_count,
)
return
}
// Copy positions to vertex array
for i := 0; i < vertex_count; i += 1 {
idx := i * 3
vertices_temp[initial_vtx + i].position = {
positions[idx],
positions[idx + 1],
positions[idx + 2],
}
}
}
// Load vertex normals (optional)
{
normal_accessor: ^cgltf.accessor
for &attr in prim.attributes {
if attr.type == .normal {
normal_accessor = attr.data
break
}
}
if normal_accessor != nil {
vertex_count := int(normal_accessor.count)
normals := make([]f32, vertex_count * 3)
defer delete(normals)
if normals_unpacked := cgltf.accessor_unpack_floats(
normal_accessor,
raw_data(normals),
uint(vertex_count * 3),
); normals_unpacked < uint(vertex_count) {
log.errorf(
"[%s]: Only unpacked %v normals out of %v expected",
new_mesh.name,
normals_unpacked,
vertex_count,
)
return
}
for i := 0; i < vertex_count; i += 1 {
idx := i * 3
vertices_temp[initial_vtx + i].normal = {
normals[idx],
normals[idx + 1],
normals[idx + 2],
}
}
}
}
// Load UV coordinates (optional, first set only)
{
uv_accessor: ^cgltf.accessor
for &attr in prim.attributes {
if attr.type == .texcoord && attr.index == 0 {
uv_accessor = attr.data
break
}
}
if uv_accessor != nil {
vertex_count := int(uv_accessor.count)
uvs := make([]f32, vertex_count * 2)
defer delete(uvs)
if texcoords_unpacked := cgltf.accessor_unpack_floats(
uv_accessor,
raw_data(uvs),
uint(vertex_count * 2),
); texcoords_unpacked < uint(vertex_count) {
log.errorf(
"]%s]: Only unpacked %v texcoords out of %v expected",
new_mesh.name,
texcoords_unpacked,
vertex_count,
)
return
}
for i := 0; i < vertex_count; i += 1 {
idx := i * 2
vertices_temp[initial_vtx + i].uv_x = uvs[idx]
vertices_temp[initial_vtx + i].uv_y = uvs[idx + 1]
}
}
}
// Load vertex colors (optional, first set only)
{
color_accessor: ^cgltf.accessor
for &attr in prim.attributes {
if attr.type == .color && attr.index == 0 {
color_accessor = attr.data
break
}
}
if color_accessor != nil {
vertex_count := int(color_accessor.count)
colors := make([]f32, vertex_count * 4)
defer delete(colors)
if colors_unpacked := cgltf.accessor_unpack_floats(
color_accessor,
raw_data(colors),
uint(vertex_count * 4),
); colors_unpacked < uint(vertex_count) {
log.warnf(
"[%s]: Only unpacked %v colors out of %v expected",
new_mesh.name,
colors_unpacked,
vertex_count,
)
}
for i := 0; i < vertex_count; i += 1 {
idx := i * 4
vertices_temp[initial_vtx + i].color = {
colors[idx],
colors[idx + 1],
colors[idx + 2],
colors[idx + 3],
}
}
}
}
// Add the completed surface to the mesh
append(&new_mesh.surfaces, new_surface)
}
// Optional: Override vertex colors with normal visualization
when OVERRIDE_VERTEX_COLORS {
for &vtx in vertices_temp {
vtx.color = {vtx.normal.x, vtx.normal.y, vtx.normal.z, 1.0}
}
}
// Upload mesh data to GPU
new_mesh.mesh_buffers = upload_mesh(engine, indices_temp[:], vertices_temp[:]) or_return
// Add completed mesh to output list
append(&meshes, new_mesh)
}
if len(meshes) == 0 {
return
}
return meshes, true
}
// Destroys a single `Mesh_Asset` and frees all its resources.
destroy_mesh_asset :: proc(mesh: ^Mesh_Asset, allocator := context.allocator) {
assert(mesh != nil, "Invalid 'Mesh_Asset'")
context.allocator = allocator
delete(mesh.name)
delete(mesh.surfaces)
free(mesh)
}
// Destroys all mesh assets in a list.
destroy_mesh_assets :: proc(meshes: ^Mesh_Asset_List, allocator := context.allocator) {
context.allocator = allocator
for &mesh in meshes {
destroy_mesh_asset(mesh)
}
delete(meshes^)
}
We will only be supporting binary GLTF for this for now. So first we open and parse file with
cgltf.parse_file.
Next we will loop each mesh, copy the vertices and indices into temporary dynamic array, and
upload them as a mesh to the engine. We will be building a dynamic array of Mesh_Asset from
this.
As we iterate each primitive within a mesh, we loop the attributes to find the vertex data we
want. We also build the index buffer properly while appending the different primitives into the
vertex arrays. At the end, we call upload_mesh to create the final buffers, then we return the
mesh list.
With the OVERRIDE_VERTEX_COLORS as a compile time config, we override the vertex colors with the
vertex normals which is useful for debugging.
The position array is going to be there always, so we use that to initialize the Vertex
structures. For all the other attributes we need to do it checking that the data exists.
Lets draw them.
test_meshes: Mesh_Asset_List,
We begin by adding them to the Engine structure. Lets load them from
engine_init_default_data().
self.test_meshes = load_gltf_meshes(self, "assets/basicmesh.glb") or_return
defer if !ok {
destroy_mesh_assets(&self.test_meshes)
}
In the file provided, index 0 is a cube, index 1 is a sphere, and index 2 is a
blender monkeyhead. we will be drawing that last one, draw it right after drawing the
rectangle from before.
push_constants = GPU_Draw_Push_Constants {
world_matrix = la.MATRIX4F32_IDENTITY,
vertex_buffer = self.test_meshes[2].mesh_buffers.vertex_buffer_address,
}
vk.CmdPushConstants(
cmd,
self.mesh_pipeline_layout,
{.VERTEX},
0,
size_of(GPU_Draw_Push_Constants),
&push_constants,
)
vk.CmdBindIndexBuffer(cmd, self.test_meshes[2].mesh_buffers.index_buffer.buffer, 0, .UINT32)
vk.CmdDrawIndexed(
cmd,
self.test_meshes[2].surfaces[0].count,
1,
self.test_meshes[2].surfaces[0].start_index,
0,
0,
)

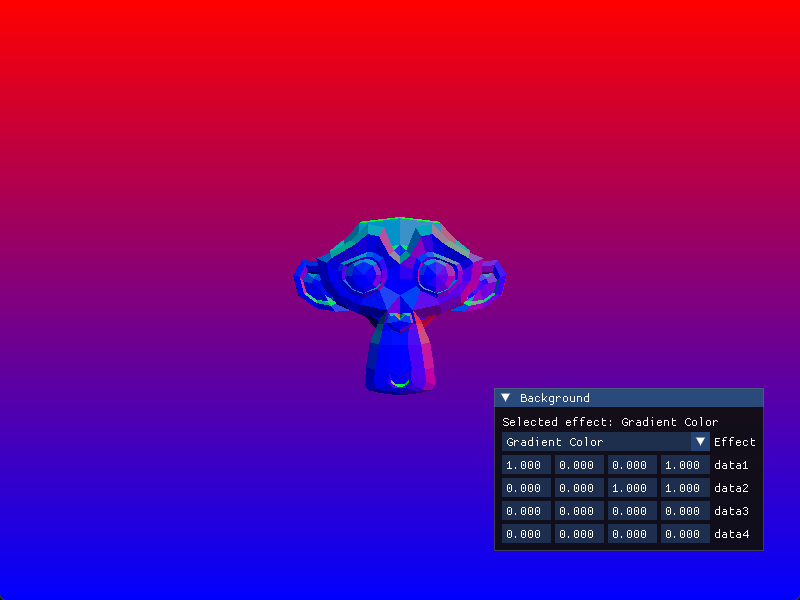

You will see that the monkey head has colors. That because we have OVERRIDE_VERTEX_COLORS set
to true, which will store normal direction as colors. We dont have proper lighting in the
shaders, so if you toggle that off you will see that the monkey head is pure solid white.
Now we have the monkey head and its visible, but its also upside down. Lets fix up that matrix.
In GLTF, the axis are meant to be for OpenGL, which has the Y up. Vulkan has Y down, so its flipped. We have 2 possibilities here. One would be to use negative viewport height, which is supported and will flip the entire rendering, this would make it closer to DirectX. On the other side, we can apply a flip that changes the objects as part of our projection matrix. We will be doing that.
From the render code, lets give it a better matrix for rendering. Add this code right before
the push constants call that draws the mesh on engine_draw_geometry().
First, create a file called math.odin that will contain some code that are not implemented in
any Odin package.
package vk_guide
// Core
import "core:math"
import la "core:math/linalg"
matrix4_perspective_reverse_z_f32 :: proc "contextless" (
fovy, aspect, near: f32,
flip_y_axis := true,
) -> (
m: la.Matrix4f32,
) #no_bounds_check {
epsilon :: 0.00000095367431640625 // 2^-20 or about 10^-6
fov_scale := 1 / math.tan(fovy * 0.5)
m[0, 0] = fov_scale / aspect
m[1, 1] = fov_scale
// Set up reverse-Z configuration
m[2, 2] = epsilon
m[2, 3] = near * (1 - epsilon)
m[3, 2] = -1
// Handle Vulkan Y-flip if needed
if flip_y_axis {
m[1, 1] = -m[1, 1]
}
return
}
The matrix4_perspective_reverse_z_f32 procedure generates a 4x4 perspective projection matrix
with a reverse-Z configuration.
// Create view matrix - place camera at positive Z looking at origin
view := la.matrix4_translate_f32({0, 0, -5})
// Create infinite perspective projection matrix with REVERSED depth
projection := matrix4_perspective_reverse_z_f32(
f32(la.to_radians(70.0)),
f32(self.draw_extent.width) / f32(self.draw_extent.height),
0.1,
true, // Invert the Y direction to match OpenGL and glTF axis conventions
)
// Other code bellow ---
// Monkey - ensure matrix order matches shader expectations
push_constants := GPU_Draw_Push_Constants {
world_matrix = projection * view,
vertex_buffer = self.test_meshes[2].mesh_buffers.vertex_buffer_address,
}
First we calculate the view matrix, which is from the camera, a translation matrix that moves backwards will be fine for now.
For the projection matrix, we are doing a trick here. The near plane is set at 0.1, but
instead of a traditional far plane, we’re crafting an infinite depth range with a
reverse-Z approach. This flips the usual depth mapping—placing the near plane at depth 1
and letting the far distance stretch toward 0—thanks to a tiny epsilon value (around 10⁻⁶)
that ensures precision without a cutoff. This is a technique that greatly increases the quality
of depth testing.
If you run the engine at this point, you will find that the monkey head is drawing a bit glitched. We havent setup depth testing, so triangles of the back side of the head can render on top of the front, creating a wrong image. Lets go and implement depth testing.
Begin by adding a new image into the Engine structure, by the side of the draw-image as they
will be paired together while rendering.
draw_image: Allocated_Image,
depth_image: Allocated_Image,
Now we will initialize it alongside the draw_image, in the engine_init_swapchain procedure.
engine_init_swapchain :: proc(self: ^Engine) -> (ok: bool) {
// Other code above ---
self.depth_image.image_format = .D32_SFLOAT
self.depth_image.image_extent = draw_image_extent
self.depth_image.allocator = self.vma_allocator
self.depth_image.device = self.vk_device
depth_image_usages := vk.ImageUsageFlags{.DEPTH_STENCIL_ATTACHMENT}
dimg_info := image_create_info(
self.depth_image.image_format,
depth_image_usages,
draw_image_extent,
)
// Allocate and create the image
vk_check(
vma.create_image(
self.vma_allocator,
dimg_info,
rimg_allocinfo,
&self.depth_image.image,
&self.depth_image.allocation,
nil,
),
) or_return
defer if !ok {
vma.destroy_image(self.vma_allocator, self.depth_image.image, nil)
}
// Build a image-view for the draw image to use for rendering
dview_info := imageview_create_info(
self.depth_image.image_format,
self.depth_image.image,
{.DEPTH},
)
vk_check(
vk.CreateImageView(self.vk_device, &dview_info, nil, &self.depth_image.image_view),
) or_return
defer if !ok {
vk.DestroyImageView(self.vk_device, self.depth_image.image_view, nil)
}
// Add to deletion queues
deletion_queue_push(&self.main_deletion_queue, self.depth_image)
return true
}
The depth image is initialized in the same way as the draw image, but we are giving it the
DEPTH_STENCIL_ATTACHMENT usage flag, and we are using D32_SFLOAT as depth format.
Make sure to also add the depth image into the deletion queue.
From the draw loop, we will transition the depth image from undefined into depth attachment
mode, In the same way we do with the draw image. This goes right before the
engine_draw_geometry() call.
transition_image(cmd, self.draw_image.image, .GENERAL, .COLOR_ATTACHMENT_OPTIMAL)
// Other code above ---
transition_image(cmd, self.depth_image.image, .UNDEFINED, .DEPTH_ATTACHMENT_OPTIMAL) // < here
Now we need to change the render pass begin info to use this depth attachment and clear it
correctly. Change this at the top of engine_draw_geometry()
color_attachment := attachment_info(self.draw_image.image_view, nil, .COLOR_ATTACHMENT_OPTIMAL)
// Other code above ---
depth_attachment := depth_attachment_info(
self.depth_image.image_view,
.DEPTH_ATTACHMENT_OPTIMAL,
)
render_info := rendering_info(self.draw_extent, &color_attachment, &depth_attachment)
We already left space for the depth attachment on the rendering_info, but we also do need to
set up the depth clear to its correct value. Lets look at the implementation of the
depth_attachment_info.
depth_attachment_info :: proc(
view: vk.ImageView,
layout: vk.ImageLayout = .COLOR_ATTACHMENT_OPTIMAL,
) -> vk.RenderingAttachmentInfo {
depth_attachment := vk.RenderingAttachmentInfo {
sType = .RENDERING_ATTACHMENT_INFO,
imageView = view,
imageLayout = layout,
loadOp = .CLEAR,
storeOp = .STORE,
}
depth_attachment.clearValue.depthStencil.depth = 0.0
return depth_attachment
}
Its similar to what we had for color attachment, but we make the loadOp to be clear, and set
the depth value on the clear structure to 0.0f. As explained above, we are going to use depth
0 as the "far" value, and depth 1 as the near value.
The last thing is to enable depth testing as part of the pipeline. We made the depth option when the pipeline builder was made, but left it disabled. Lets fill that now. Add this procedure to PipelineBuilder.
pipeline_builder_enable_depth_test :: proc(
self: ^Pipeline_Builder,
depth_write_enable: bool,
op: vk.CompareOp,
) {
self.depth_stencil.depthTestEnable = true
self.depth_stencil.depthWriteEnable = b32(depth_write_enable)
self.depth_stencil.depthCompareOp = op
self.depth_stencil.depthBoundsTestEnable = false
self.depth_stencil.stencilTestEnable = false
self.depth_stencil.front = {}
self.depth_stencil.back = {}
self.depth_stencil.minDepthBounds = 0.0
self.depth_stencil.maxDepthBounds = 1.0
}
We will leave the stencil parts all off, but we will enable depth testing, and pass the depth OP into the structure.
Now time to use it from the place where we build the pipelines. Change this part on
engine_init_mesh_pipeline.
// pipeline_builder_disable_depth_test(&builder)
pipeline_builder_enable_depth_test(&builder, true, .GREATER_OR_EQUAL)
// Connect the image format we will draw into, from draw image
pipeline_builder_set_color_attachment_format(&builder, self.draw_image.image_format)
pipeline_builder_set_depth_attachment_format(&builder, self.depth_image.image_format)
We call the enable_depth_test procedure from the builder, and we give it depth write, and as
operator GREATER_OR_EQUAL. As mentioned, because 0 is far and 1 is near, we will want to
only render the pixels if the current depth value is greater than the depth value on the depth
image.
Modify that set_depth_format call on the engine_init_triangle_pipeline procedure too. Even
if depth testing is disabled for a draw, we still need to set the format correctly for the
render pass to work without validation layer issues.
You can run the engine now, and the monkey head will be setup properly. The other draws with the triangle and rectangle render behind it because we have no depth testing set for them so they neither write or read from the depth attachment.
We need to add cleanup code for the new meshes we are creating, so we will destroy the buffers of the mesh array in the cleanup procedure, before the main deletion queue flush.
for &mesh in self.test_meshes {
destroy_buffer(mesh.mesh_buffers.index_buffer)
destroy_buffer(mesh.mesh_buffers.vertex_buffer)
}
destroy_mesh_assets(&self.test_meshes)
deletion_queue_destroy(&self.main_deletion_queue)
Before continuing, remove the code with the rectangle mesh and the triangle in the background.
We will no longer need them. Delete engine_init_triangle_pipeline procedure, its objects, and
the creation of the rectangle mesh on engine_init_default_data plus its usages. On
engine_draw_geometry, move the viewport and scissor code so that its after the call to
vk.CmdBindPipeline(cmd, .GRAPHICS, self.mesh_pipeline), as the call to binding the triangle
pipeline is now gone and those vk.CmdSetViewport and vk.CmdSetScissor calls need to be done
with a pipeline bound.
Next, we will setup transparent objects and blending.
