Vulkan Shaders

Running Code On The GPU

We have the render loop implemented now, so the next step is to draw something.

Instead of drawing geometry just yet, we are going to use Compute Shaders to write data into a image, and then display that image to the screen. Compute shaders to calculate images is a very common use case that you can see from complex postprocessing chains in engines. Its also common to do when the programmer is going to do raytracing or other non-geometry drawing.

vk.Pipeline

In vulkan, to execute code on the gpu, we need to setup a pipeline. There are two types of pipelines, Graphics and Compute. The Compute pipelines are much simpler, because they only require the data for the shader code, and the layout for the descriptors used for data bindings. Graphics pipelines, on the other hand, have to configure a considerable amount of state for all of the fixed function hardware in the GPU such as color blending, depth testing, or geometry formats. We will use them next chapter.

Both types of pipelines share the shader modules and the layouts, which are built in the same way.

vk.ShaderModule

A vk.ShaderModule is a processed shader file. We create it from a pre-compiled SPIR-V file. We will be using Slang that targets GLSL. However, in vulkan, unlike in OpenGL, the driver does not accept shader code in GLSL directly. There are extensions that allow it, but its not standard. So we need to compile our slang files ahead of time into a compiled SPIR-V file. As part of the Vulkan SDK, we have the slangc program, which is used to compile Slang into SPIR-V.

Learn more about the Slang Shading Language and Compiler.

To compile the shaders used in this tutorial, navigate to the /shaders/source/ directory. You will find scripts named compile.bat for Windows and compile.sh for Unix systems. Run the appropriate script for your operating system to compile all shader files. Whenever you need to compile the shaders, simply execute the corresponding script to build them.

Descriptor Sets

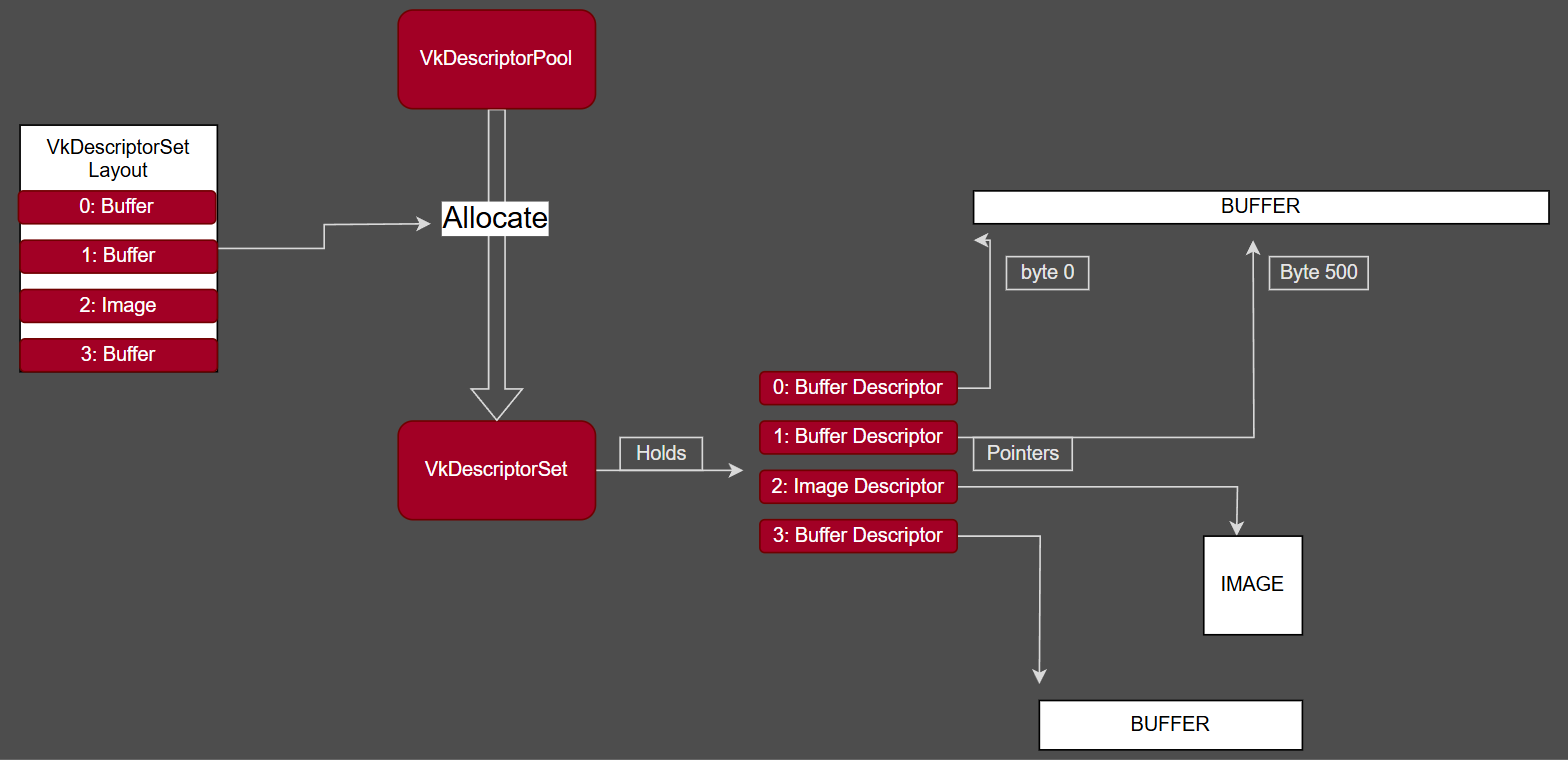

To give data to the shaders, we need to setup some bindings. In vulkan, binding objects like images and buffers to the shader requires Descriptor Sets. Think of a single descriptor as a handle or pointer into a resource. That resource being a Buffer or a Image, and also holds other information, such as the size of the buffer, or the type of sampler if it's for an image. A vk.DescriptorSet is a pack of those pointers that are bound together. Vulkan does not allow you to bind individual resources in shaders. Descriptor sets are allocated from a vk.DescriptorPool, using a vk.DescriptorLayout that contains the information about what that descriptor set holds (for example, 2 images). Once a descriptor set is allocated, you can update its data using vkUpdateDescriptorSets, which takes an array of vk.WriteDescriptorSet. Once you have a fully configured descriptor set, you can bind it to your pipeline using vk.BindDescriptorSets, and its data will be available in the shader.

Open on a new tab/window to enlarge the image

In this chapter we will connect a draw image to the compute shader so that the shader can write into it. Over the tutorial, we will be writing some abstractions that simplify this flow. A pipeline can have multiple slots to bind a few descriptor sets. The vulkan spec guarantees that we will have at least 4 sets, so that will be what we will target in the tutorial. According to gpu vendors, each descriptor set slot has a cost, so the less we have, the better. Later in the tutorial we will have Descriptor Set #0 to always bind some global scene data, which will contain some uniform buffers, and some special textures. Descriptor Set #1 will be used for per-object data.

Push Constants

Apart from Descriptor Sets, which are used to connect the shaders to buffers and images, vulkan offers an option to directly write a few bytes of data while recording the command buffer. PushConstants is a mechanic unique to vulkan which reserves a very small amount of memory to be bound directly to the shader. This one is fast, but its also very limited in space and must be written as you encode the commands. Its main use is that you can give it some per-object data, if your objects dont need much of it, but according to gpu vendors, their best use case is to send some indexes to the shader to be used to access some bigger data buffers.

Pipeline Layout

A shader has some inputs it needs, and this is what a vk.PipelineLayout is made of. To create one, we must give it the vk.DescriptorSetLayout of the descriptor slots it needs, and PushConstantRange defining its push constant usage. PipelineLayouts for a graphics and compute pipeline are made in the same way, and they must be created before the pipeline itself.

The Compute Pipeline

To build a compute pipeline, we need to create first the pipeline layout for it, and then hook a single shader module for its code. Once its built, we can execute the compute shader by first calling vk.CmdBindPipeline and then calling vk.CmdDispatch.

Compute shaders have a specific programming model. When we call vk.CmdDispatch, we give vulkan a number of work groups to launch in 3 dimensions in a X Y Z fashion. In our case here, we will be using it to draw a image, so we only use 2 of those dimensions, that way we can execute one workgroup per group of pixels in the image.

In the compute shader, the [numthreads(16, 16, 1)] attribute is specified directly above the main function. By doing that, we are setting the size of a single workgroup. This means that for every work unit from the vk.CmdDispatch, we will have 16x16 lanes of execution, which works well to write into a 16x16 pixel square.

On the shader code, we can access what the lane index is through SV_GroupThreadID variable. There is also SV_DispatchThreadID and SV_GroupID. By using those variables we can find out what pixel exactly do we write from each lane.

Lets now set all of this up in the code and get our first shaders working.
