Vulkan Shaders - Code

Lets now write the code necesary for our compute shader. We will begin with a very simple shader that has an image as input, and writes a color to it, based on the thread ID, forming a gradient. This one is already on the code, in the shaders folder. From now on, all the shaders we add will go into that folder as the CMake script will build them.

/shaders/source/gradient.comp.slang
RWTexture2D<float4> image;

[shader("compute")]
[numthreads(16, 16, 1)]
void main(
    uint3 dispatchThreadID: SV_DispatchThreadID,
    uint3 groupThreadID: SV_GroupThreadID)
{
    int2 texelCoord = int2(dispatchThreadID.xy);
    var size = uint2(0, 0);
    image.GetDimensions(size.x, size.y);

    if (texelCoord.x < size.x && texelCoord.y < size.y)
    {
        float4 color = float4(0.0, 0.0, 0.0, 1.0);

        if (groupThreadID.x != 0 && groupThreadID.y != 0)
        {
            color.x = float(texelCoord.x) / float(size.x);
            color.y = float(texelCoord.y) / float(size.y);
        }

        image[texelCoord] = color;
    }
}

The shader begins with the declaration RWTexture2D<float4> image, which defines a read-write 2D texture resource. Each element of this texture is a four-component vector (float4), typically representing red, green, blue, and alpha channels (RGBA). This texture serves as the output target, where the shader will write its computed results.

The [shader("compute")] attribute explicitly designates this as a compute shader, distinguishing it from other shader types such as vertex or fragment shaders. Compute shaders operate on a grid of threads, enabling highly parallel execution. The [numthreads(16, 16, 1)] attribute specifies the thread group size, defining a 16x16x1 grid of threads. This configuration results in 256 threads per group, with the third dimension (z) set to 1, indicating a two-dimensional workload.

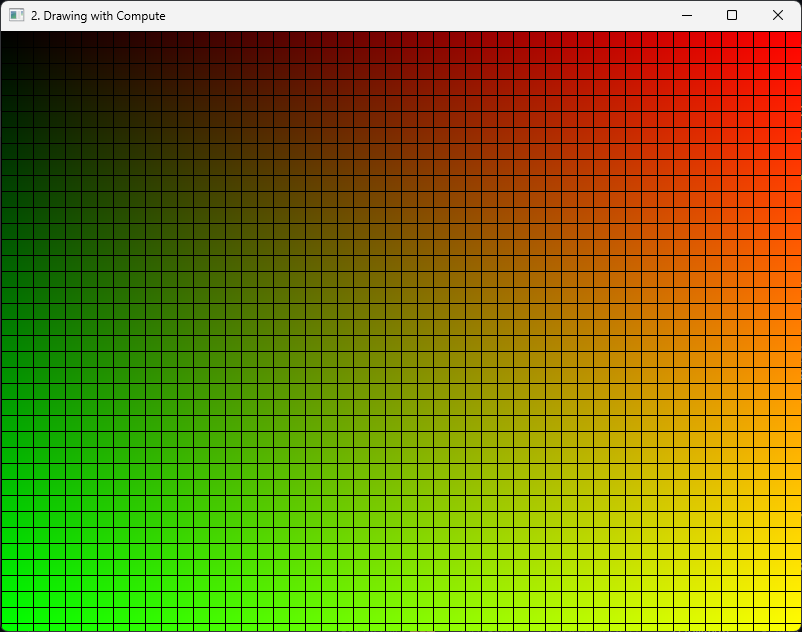

The shader itself is a simple demonstration shader that generates a gradient based on the dispatchThreadID—a unique identifier for each thread across all workgroups. To add a visual distinction, if the groupThreadID (the thread's position within its workgroup) is 0 on either the X or Y axis, the shader outputs black. This creates a grid pattern in the resulting image, where the black lines highlight the boundaries between workgroups, making it easy to visualize how the shader's thread groups are invoked.

Slang to SPIR-V​

The Vulkan SDK includes a tool called slangc, a compiler that converts Slang Shading Language source code into SPIR-V, the binary format required by Vulkan for executing shaders on the GPU.

In the odin-vk-guide codebase, the /shaders/source/ directory contains two helper scripts: compile.bat (for Windows) and compile.sh (for Unix-based systems). These scripts simplify the process of compiling shaders for this tutorial. To generate the necessary SPIR-V files, you’ll need to run the appropriate script for your platform whenever you modify or add shaders.

Before running compile.sh on Unix for the first time, you'll need to make it executable:

chmod +x ./compile.sh
Recompile the shaders

Any time you touch the shaders, make sure you compile the shaders. This process has to succeed with no errors, or the project will be missing the SPIR-V files necessary to run this shaders on the gpu.

Automatic Compilation with Watch Mode​

The compile scripts offer a convenient "watch" feature to monitor the shaders folder for changes. To enable this, pass watch as an argument:

compile.bat watch

When you run this command, the script will:

  1. Compile all shaders in the folder initially.
  2. Continuously monitor the folder and recompile any shader file that’s modified.

This is especially useful during development, as it eliminates the need to manually re-run the script after every change.

Manual Compilation With slangc​

If you prefer to compile shaders manually, you can use slangc directly. Here’s the basic syntax:

slangc gradient.comp.slang -entry main -profile glsl_450 -target spirv -o gradient.comp.spv

Command breakdown:

  • slangc - Runs the Slang compiler (using it from the system PATH)
  • gradient.comp.slang - The input Slang source file to be compiled
  • -entry main - Specifies the entry point function name
    • The compiler will look for a function named main as the shader entry point. In our shaders, we will always use main as the entry point
    • For compute shaders, this function is decorated with [shader("compute")].
  • -profile glsl_450 - Specifies GLSL 4.50 as the shader model/language version
    • This tells the compiler to follow GLSL 4.50 language rules and feature set
    • This profile is compatible with Vulkan
  • -target spirv - Outputs the shader as SPIR-V binary code
    • SPIR-V is Vulkan's shader binary format
    • This produces a binary file that can be loaded directly by Vulkan
  • -o gradient.comp.spv - Specifies the output file name and location
    • The compiled SPIR-V binary will be written to gradient.comp.spv
    • The .spv extension is standard for SPIR-V shader binary files

Setting Up The Descriptor Layout​

To build the compute pipeline, we need to create its layout. In this case, the layout will only contain a single descriptor set that then has a image as its binding 0.

To build a descriptor layout, we need to store an array of bindings. Lets create a structure to abstract this so that handling those is simpler. Our descriptor abstractions will go into descriptors.odin.

warning

We will use fixed array with default maximums based on typical Vulkan implementations, These values can be too much or not enough, but we can adjust them as needed.

descriptors.odin
package vk_guide

// Core
import sa "core:container/small_array"

// Vendor
import vk "vendor:vulkan"

MAX_BOUND_DESCRIPTOR_SETS :: #config(MAX_BOUND_DESCRIPTOR_SETS, 16)

Descriptor_Bindings :: sa.Small_Array(MAX_BOUND_DESCRIPTOR_SETS, vk.DescriptorSetLayoutBinding)

Descriptor_Layout_Builder :: struct {
    device:   vk.Device,
    bindings: Descriptor_Bindings,
}

descriptor_layout_builder_init :: proc(self: ^Descriptor_Layout_Builder, device: vk.Device) {
    self.device = device
}

We will be storing vk.DescriptorSetLayoutBinding, a configuration/info struct, into an array, and then have a build() procedure which creates the vk.DescriptorSetLayout, which is a vulkan object, not a info/config structure.

MAX_BOUND_DESCRIPTOR_SETS

In Vulkan, the concept of "descriptor set layouts" relates to how resources like textures and buffers are organized for shaders. The maximum number of descriptor set layouts a pipeline can have is tied to the device's maxBoundDescriptorSets limit, which indicates how many descriptor sets can be bound at once. This value is not fixed and depends on the specific GPU, but it's commonly at least 4, with some devices supporting up to 8.

Lets write the procedures for that builder.

descriptor_layout_builder_add_binding :: proc(
    self: ^Descriptor_Layout_Builder,
    binding: u32,
    type: vk.DescriptorType,
    loc := #caller_location,
) {
    // Assert that we haven't exceeded the maximum number of descriptor sets
    assert(sa.len(self.bindings) < MAX_BOUND_DESCRIPTOR_SETS, loc = loc)

    new_binding := vk.DescriptorSetLayoutBinding {
        binding         = binding,
        descriptorCount = 1,
        descriptorType  = type,
    }

    sa.push_back(&self.bindings, new_binding)
}

descriptor_layout_builder_clear :: proc(self: ^Descriptor_Layout_Builder) {
    sa.clear(&self.bindings)
}

First, we have the descriptor_layout_builder_add_binding procedure. This will just write a vk.DescriptorSetLayoutBinding and push it into the array. When creating a layout binding, for now we only need to know the binding number and the descriptor type. With the example of the compute shader above, thats binding = 0, and type is .STORAGE_IMAGE, which is a writeable image.

Next is creating the layout itself.

descriptor_layout_builder_build :: proc(
    self: ^Descriptor_Layout_Builder,
    shader_stages: vk.ShaderStageFlags,
    pNext: rawptr = nil,
    flags: vk.DescriptorSetLayoutCreateFlags = {},
    loc := #caller_location,
) -> (
    set: vk.DescriptorSetLayout,
    ok: bool,
) #optional_ok {
    assert(shader_stages != {}, "No shader stages specified for descriptor set layout.", loc = loc)
    assert(sa.len(self.bindings) > 0, "No bindings added to descriptor layout builder.", loc = loc)

    for &b in sa.slice(&self.bindings) {
        b.stageFlags += shader_stages
    }

    info := vk.DescriptorSetLayoutCreateInfo {
        sType        = .DESCRIPTOR_SET_LAYOUT_CREATE_INFO,
        pNext        = pNext,
        bindingCount = u32(sa.len(self.bindings)),
        pBindings    = raw_data(sa.slice(&self.bindings)),
        flags        = flags,
    }

    vk_check(vk.CreateDescriptorSetLayout(self.device, &info, nil, &set)) or_return

    return set, true
}

We are first looping through the bindings and adding the stage-flags. For each of the descriptor bindings within a descriptor set, they can be different between the fragment shader and vertex shader. We wont be supporting per-binding stage flags, and instead force it to be for the whole descriptor set.

Next we need to build the vk.DescriptorSetLayoutCreateInfo, which we dont do much with, just hook it into the array of descriptor bindings. We then call vk.CreateDescriptorSetLayout and return the set layout.

Descriptor Allocator​

With the layout, we can now allocate the descriptor sets. Lets also write a allocator struct that will abstract it so that we can keep using it through the codebase.

Pool_Size_Ratio :: struct {
    type:  vk.DescriptorType,
    ratio: f32,
}

Descriptor_Allocator :: struct {
    device: vk.Device,
    vk.DescriptorPool,
}

Descriptor allocation happens through vk.DescriptorPool. Those are objects that need to be pre-initialized with some size and types of descriptors for it. Think of it like a memory allocator for some specific descriptors. Its possible to have 1 very big descriptor pool that handles the entire engine, but that means we need to know what descriptors we will be using for everything ahead of time. That can be very tricky to do at scale. Instead, we will keep it simpler, and we will have multiple descriptor pools for different parts of the project, and try to be more accurate with them.

One very important thing to do with pools is that when you reset a pool, it destroys all of the descriptor sets allocated from it. This is very useful for things like per-frame descriptors. That way we can have descriptors that are used just for one frame, allocated dynamically, and then before we start the frame we completely delete all of them in one go. This is confirmed to be a fast path by GPU vendors, and recommended to use when you need to handle per-frame descriptor sets.

The DescriptorAllocator we have just declared has procedures to initialize a pool, clear the pool, and allocate a descriptor set from it.

Lets write the code now.

MAX_POOL_SIZES :: #config(MAX_POOL_SIZES, 12)

Pool_Sizes :: sa.Small_Array(MAX_POOL_SIZES, vk.DescriptorPoolSize)

descriptor_allocator_init_pool :: proc(
    self: ^Descriptor_Allocator,
    device: vk.Device,
    max_sets: u32,
    pool_ratios: []Pool_Size_Ratio,
) -> (
    ok: bool,
) {
    self.device = device

    pool_sizes: Pool_Sizes

    for &ratio in pool_ratios {
        sa.push_back(
            &pool_sizes,
            vk.DescriptorPoolSize {
                type = ratio.type,
                descriptorCount = u32(ratio.ratio) * max_sets,
            },
        )
    }

    pool_info := vk.DescriptorPoolCreateInfo {
        sType         = .DESCRIPTOR_POOL_CREATE_INFO,
        maxSets       = max_sets,
        poolSizeCount = u32(sa.len(pool_sizes)),
        pPoolSizes    = raw_data(sa.slice(&pool_sizes)),
    }

    vk_check(vk.CreateDescriptorPool(device, &pool_info, nil, &self.pool)) or_return

    return true
}

descriptor_allocator_clear_descriptors :: proc(self: ^Descriptor_Allocator) {
    vk.ResetDescriptorPool(self.device, self.pool, {})
}

descriptor_allocator_destroy_pool :: proc(self: ^Descriptor_Allocator) {
    vk.DestroyDescriptorPool(self.device, self.pool, nil)
}

We add creation and destruction procedures. The clear procedure is not a delete, but a reset. It will destroy all of the descriptors created from the pool and put it back to initial state, but wont delete the VkDescriptorPool itself.

To initialize a pool, we use vk.CreateDescriptorPool and give it an array of PoolSizeRatio. Thats a structure that contains a type of descriptor (same VkDescriptorType as on the bindings above ), alongside a ratio to multiply the maxSets parameter is. This lets us directly control how big the pool is going to be. maxSets controls how many VkDescriptorSets we can create from the pool in total, and the pool sizes give how many individual bindings of a given type are owned.

Now we need the last procedure, descriptor_allocator_allocate. Here it is.

descriptor_allocator_allocate :: proc(
    self: ^Descriptor_Allocator,
    device: vk.Device,
    layout: ^vk.DescriptorSetLayout,
) -> (
    ds: vk.DescriptorSet,
    ok: bool,
) #optional_ok {
    allocInfo := vk.DescriptorSetAllocateInfo {
        sType              = .DESCRIPTOR_SET_ALLOCATE_INFO,
        descriptorPool     = self.pool,
        descriptorSetCount = 1,
        pSetLayouts        = layout,
    }

    vk_check(vk.AllocateDescriptorSets(device, &allocInfo, &ds)) or_return

    return ds, true
}

We need to fill the vk.DescriptorSetAllocateInfo. It needs the descriptor pool we will allocate from, how many descriptor sets to allocate, and the set layout.

Initializing The Layout And Descriptors​

Lets add a new procedure to the engine and some new fields we will use.

Engine :: struct {
    global_descriptor_allocator:  Descriptor_Allocator,
    draw_image_descriptors:       vk.DescriptorSet,
    draw_image_descriptor_layout: vk.DescriptorSetLayout,
}

We will be storing one of those descriptor allocators in our engine as the global allocator. Then we need to store the descriptor set that will bind our render image, and the descriptor layout for that type of descriptor, which we will need later for creating the pipeline.

Remember to add the engine_init_descriptors() procedure to the engine_init() procedure of the engine, after engine_sync_structures.

engine_init :: proc(self: ^Engine) -> (ok: bool) {
    // Other code ---

    engine_init_commands(self) or_return

    engine_init_sync_structures(self) or_return

    engine_init_descriptors(self) or_return // < here

    // Everything went fine
    self.is_initialized = true

    return true
}

We can now begin writing the procedure.

engine_init_descriptors :: proc(self: ^Engine) -> (ok: bool) {
    // Create a descriptor pool that will hold 10 sets with 1 image each
    sizes := []Pool_Size_Ratio{{.STORAGE_IMAGE, 1}}

    descriptor_allocator_init_pool(
        &self.global_descriptor_allocator,
        self.vk_device,
        10,
        sizes,
    ) or_return
    deletion_queue_push(&self.main_deletion_queue, self.global_descriptor_allocator.pool)

    {
        // Make the descriptor set layout for our compute draw
        builder: Descriptor_Layout_Builder
        descriptor_layout_builder_init(&builder, self.vk_device)
        descriptor_layout_builder_add_binding(&builder, 0, .STORAGE_IMAGE)
        self.draw_image_descriptor_layout = descriptor_layout_builder_build(
            &builder,
            {.COMPUTE},
        ) or_return
    }
    deletion_queue_push(&self.main_deletion_queue, self.draw_image_descriptor_layout)

    return true
}

We will first initialize the descriptor allocator with 10 sets, and we 1 descriptor per set of type .STORAGE_IMAGE. Thats the type used for a image that can be written to from a compute shader.

Then, we use the layout builder to build the descriptor set layout we need, which is a layout with only 1 single binding at binding number 0, of type .STORAGE_IMAGE too (matching the pool).

With this, we would be able to allocate up to 10 descriptors of this type for use with compute drawing.

We continue the procedure by allocating one of them, and writing it so that it points to our draw image.

engine_init_descriptors :: proc(self: ^Engine) -> (ok: bool) {
    // Other code ---

    // Allocate a descriptor set for our draw image
    self.draw_image_descriptors = descriptor_allocator_allocate(
        &self.global_descriptor_allocator,
        self.vk_device,
        &self.draw_image_descriptor_layout,
    ) or_return

    img_info := vk.DescriptorImageInfo {
        imageLayout = .GENERAL,
        imageView   = self.draw_image.image_view,
    }

    draw_image_write := vk.WriteDescriptorSet {
        sType           = .WRITE_DESCRIPTOR_SET,
        dstBinding      = 0,
        dstSet          = self.draw_image_descriptors,
        descriptorCount = 1,
        descriptorType  = .STORAGE_IMAGE,
        pImageInfo      = &img_info,
    }

    vk.UpdateDescriptorSets(self.vk_device, 1, &draw_image_write, 0, nil)

    return true
}

First we allocate a descriptor set object with the help of the allocator, of layout draw_image_descriptor_layout which we created above. Then we need to update that descriptor set with our draw image. To do that, we need to use the vkUpdateDescriptorSets procedure. This procedure takes an array of vk.WriteDescriptorSet which are the individual updates to perform. We create a single write, which points to binding 0 on the set we just allocated, and it has the correct type. It also points to a vk.DescriptorImageInfo holding the actual image data we want to bind, which is going to be the imageview for our draw image.

With this done, we now have a descriptor set we can use to bind our draw image, and the layout we needed. We can finally proceed to creating the compute pipeline

The Compute Pipeline​

With the descriptor set layout, we now have a way of creating the pipeline layout. There is one last thing we have to do before creating the pipeline, which is to load the shader code to the driver. In vulkan pipelines, to set shaders you need to build a vk.ShaderModule. We are going to add a procedure to load those as part of pipelines.odin.

Now add this procedure.

pipelines.odin (create the file)
package vk_guide

// Core
import "base:runtime"
import "core:log"
import "core:os"

// Vendor
import vk "vendor:vulkan"

load_shader_module :: proc(
    device: vk.Device,
    file_path: string,
) -> (
    shader: vk.ShaderModule,
    ok: bool,
) #optional_ok {
    runtime.DEFAULT_TEMP_ALLOCATOR_TEMP_GUARD()
    if code, code_ok := os.read_entire_file(file_path, context.temp_allocator); code_ok {
        // Create a new shader module, using the code we loaded
        return create_shader_module(device, code)
    }
    log.errorf("Failed to load shader file: [%s]", file_path)
    return
}

create_shader_module :: proc(
    device: vk.Device,
    code: []byte,
) -> (
    shader: vk.ShaderModule,
    ok: bool,
) #optional_ok {
    create_info := vk.ShaderModuleCreateInfo {
        sType    = .SHADER_MODULE_CREATE_INFO,
        codeSize = len(code),
        pCode    = cast(^u32)raw_data(code),
    }

    vk_check(
        vk.CreateShaderModule(device, &create_info, nil, &shader),
        "failed to create shader module",
    ) or_return

    return shader, true
}

With this procedure, we first load the file into a []byte. This will store the compiled shader data, which we can then use on the call to vk.CreateShaderModule. The create-info for a shader module needs nothing except the shader data as an int array. Shader modules are only needed when building a pipeline, and once the pipeline is built they can be safely destroyed, so we wont be storing them in the Engine struct.

Back to engine.odin, lets add the new fields we will need in the Engine struct, and the engine_init_pipelines() procedure alongside a engine_init_background_pipelines() procedure. engine_init_pipelines() will call the other pipeline initialization procedures that we will add as the tutorial progresses.

Engine :: struct {
    gradient_pipeline:        vk.Pipeline,
    gradient_pipeline_layout: vk.PipelineLayout,
}

Add it to the engine_init procedure. The engine_init_pipelines() procedure will call init_background_pipelines()

engine_init :: proc(self: ^Engine) -> (ok: bool) {
    // Other code ---

    engine_init_commands(self) or_return

    engine_init_sync_structures(self) or_return

    engine_init_descriptors(self) or_return

    engine_init_pipelines(self) or_return // < here

    // Everything went fine
    self.is_initialized = true

    return true
}

engine_init_pipelines :: proc(self: ^Engine) -> (ok: bool) {
    engine_init_background_pipelines(self) or_return
    return true
}

Lets now begin creating the pipeline. The first thing we will do is create the pipeline layout.

engine_init_background_pipelines :: proc(self: ^Engine) -> (ok: bool) {
    compute_layout := vk.PipelineLayoutCreateInfo {
        sType                  = .PIPELINE_LAYOUT_CREATE_INFO,
        pSetLayouts            = &self.draw_image_descriptor_layout,
        setLayoutCount         = 1,
    }

    vk_check(
        vk.CreatePipelineLayout(
            self.vk_device,
            &compute_layout,
            nil,
            &self.gradient_pipeline_layout,
        ),
    ) or_return

    return true
}

To create a pipeline, we need an array of descriptor set layouts to use, and other configuration such as push-constants. On this shader we wont need those so we can skip them, leaving only the DescriptorSetLayout.

Now, we are going to create the pipeline object itself by loading the shader module and adding it plus other options into a VkComputePipelineCreateInfo.

engine_init_background_pipelines :: proc(self: ^Engine) -> (ok: bool) {
    // Other code ---

    GRADIENT_COMP_SPV :: #load("./../../shaders/compiled/gradient.comp.spv")
    gradient_shader := create_shader_module(self.vk_device, GRADIENT_COMP_SPV) or_return
    defer vk.DestroyShaderModule(self.vk_device, gradient_shader, nil)

    stage_info := vk.PipelineShaderStageCreateInfo {
        sType  = .PIPELINE_SHADER_STAGE_CREATE_INFO,
        stage  = {.COMPUTE},
        module = gradient_shader,
        pName  = "main",
    }

    compute_pipeline_create_info := vk.ComputePipelineCreateInfo {
        sType  = .COMPUTE_PIPELINE_CREATE_INFO,
        layout = self.gradient_pipeline_layout,
        stage  = stage_info,
    }

    vk_check(
        vk.CreateComputePipelines(
            self.vk_device,
            0,
            1,
            &compute_pipeline_create_info,
            nil,
            &self.gradient_pipeline,
        ),
    ) or_return

    return true
}

First we load the gradient_shader vk.ShaderModule by using the procedure we created just now. We will check for error as its very common for it to fail if the file is wrong. Keep in mind that the paths here are configured to work for the default windows + msvc build folders. If you are using any other option, check that the file paths are correct. Consider abstracting the path yourself to work from a folder set in a config file.

Then, we need to connect the shader into a vk.PipelineShaderStageCreateInfo. The thing to note here is that we are giving it the name of the procedure we want the shader to use, which is going to be main(). It is possible to store multiple compute shader variants on the same shader file, by using different entry point procedures and then setting them up here.

Last, we fill the vk.ComputePipelineCreateInfo. We will need the stage info for the compute shader, and the layout. We can then call vk.CreateComputePipelines.

At the end of the procedure, we will do proper cleanup of the structures so that they get deleted at the end of the program through the deletion queue.

engine_init_background_pipelines :: proc(self: ^Engine) -> (ok: bool) {
    // Other code ---

    deletion_queue_push(&self.main_deletion_queue, self.gradient_pipeline_layout)
    deletion_queue_push(&self.main_deletion_queue, self.gradient_pipeline)

    return true
}

We can destroy the shader module directly on the procedure, we created the pipeline so we have no need for it anymore. With the pipeline and its layout, we need to wait until the end of the program.

We are now ready to draw with it.

Drawing With Compute​

Go back to the engine_draw_background() procedure, we will replace the vk.CmdClear with a compute shader invocation.

engine_draw_background :: proc(self: ^Engine, cmd: vk.CommandBuffer) -> (ok: bool) {
    // Bind the gradient drawing compute pipeline
    vk.CmdBindPipeline(cmd, .COMPUTE, self.gradient_pipeline)

    // Bind the descriptor set containing the draw image for the compute pipeline
    vk.CmdBindDescriptorSets(
        cmd,
        .COMPUTE,
        self.gradient_pipeline_layout,
        0,
        1,
        &self.draw_image_descriptors,
        0,
        nil,
    )

    // Execute the compute pipeline dispatch. We are using 16x16 workgroup size so
    // we need to divide by it
    vk.CmdDispatch(
        cmd,
        u32(math.ceil_f32(f32(self.draw_extent.width) / 16.0)),
        u32(math.ceil_f32(f32(self.draw_extent.height) / 16.0)),
        1,
    )

    return true
}

First we need to bind the pipeline using vk.CmdBindPipeline. As the pipeline is a compute shader, we use vk.PipelineBindPoint.COMPUTE. Then, we need to bind the descriptor set that holds the draw image so that the shader can access it. Finally, we use vk.CmdDispatch to launch the compute shader. We will decide how many invocations of the shader to launch (remember, the shader is 16x16 per workgroup) by dividing the resolution of our draw image by 16, and rounding up.

If you run the program at this point, it should display this image. If you have an error when loading the shader, make sure you have the shaders built by the provided script.

Compute Grid
